The Back-UPS CS provides professional-grade power protection for office and home office systems. Battery powered and surge protected power outlets, built-in phone/fax/modem line (DSL compatible) protection, safe system shutdown software with sophisticated power management features and pro-active audio-visual status indicators ensure office systems and their valuable data are protected from dangerous power surges, spikes and blackouts. Serial or USB connectivity gives users more flexibility making installation quicker and easier. Activation Code For Magix Movie Edit Pro 16. Final Burn Alpha Psp. Easy access to a hot-swappable, user-replaceable battery also makes servicing the Back-UPS CS hassle-free. These features along with its classic styling make the Back-UPS CS a perfect choice for protecting your important office and home office systems.

APC Back-UPS CS 500 provides battery backup power that allows you to work through short and medium length power outages.

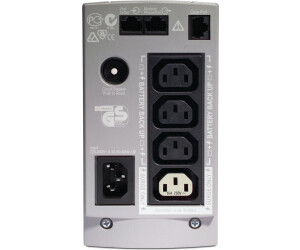

Back-UPS ™ 350/500 User’s Manual 990-2085 2/01 Installation 2 Connect Equipment The rear panel of the Back-UPS consists of the following elements: Battery Back Up Outlets (qty. Digipro Wp4030 Driver. These outlets provide battery back-up, surge protection, and Electro-magnetic Interference (EMI) filtering.

In case of power outage, battery power is automatically provided to these outlets. Power (utility or battery) is not supplied to these outlets when the Back-UPS is switched Off. Connect a computer, monitor, and external disk or CD-ROM drive to these outlets. Surge Only Outlet. This outlet is always On (when utility power is available) and is not controlled by the On/Off switch.

This outlet does not provide power during a power outage. Connect a printer, fax machine or scanner to this outlet. Note: Allow the Back-UPS to charge for a full eight hours prior to use.

Press the push-button on the front panel of the Back- UPS. Observe that the following events occur after pressing and releasing the push-button: • The green On-Line indicator flashes. • The yellow On Battery indicator lights while the Self-Test is being performed.

• When Self-Test has successfully completed, only the green On Line indicator will be lit. • If the internal battery is not connected, (see Step 1 above) the green On Line indicator and red Replace Battery indicator will light.

The Back- UPS will also emit a chirping sound. ON LINE ON BATTERY OVERLOAD REPLACE BATTERY 5 Connect USB Cable and Install Software (optional) Note: The Back-UPS software CD-ROM provides data reporting and unattended shutdown of computers connected to the device. The User’s Guide contains additional information about the Back-UPS software. The User’s Guide is contained in the main folder with the CD-ROM. Attention: USB Hubs The Back-UPS should be plugged into the USB port of the computer, not into a USB hub. The computer must be powered On before connecting the USB cable. Connect the USB cable end (USB symbol facing down) to the rear panel USB port of the Back-UPS.

Connect the other end of the USB cable to the USB port (usually located on the rear panel of the computer). Windows 98 ® and Windows Me ® Users The APC Power Management Extensions software has been designed specifically to work with Windows 98 build number 4.10.1998, Windows 98 SE (Second Edition) 4.10.2222A, and Windows Me (Millennium Edition). To ascertain the build number, go to the Control Panel, open the System dialog and view the System information under the General tab of the dialog. To install the software, perform the following steps: 1.

Please skip to step 4 if running Windows Me. For Windows 98, after connecting the USB cable, the “Add New Hardware Wizard” dialog box is displayed. Insert a Windows 98 operating system CD into the computer CD-ROM drive before proceeding. Follow the installation instructions on the computer screen. During installation, Windows will need to search for new drivers. When prompted, make sure the CD-ROM drive box is checked. There are four status indicators (lights) on the front panel of the Back-UPS (On Line, On Battery, Overload, and Replace Battery).

On Line (green) - is lit whenever utility power is powering the Battery Backup outlets. ON LINE ON BATTERY OVERLOAD REPLACE BATTERY On Battery (yellow) - is lit whenever the battery of the Back-UPS is powering equipment connected to the Battery Backup Outlets. Four Beeps Every 30 Seconds - this alarm is sounded whenever the Back- UPS is running On Battery. Consider saving work in progress.

Continuous Beeping - this alarm is sounded whenever a low battery condition is reached. Battery run-time is very low. Promptly save any work in progress and exit all open applications.

Shutdown the operating system, computer and the Back-UPS. Overload (red) - is lit whenever power demand has exceeded the capac- ity of the Back-UPS. Continuous Tone - this alarm is sounded whenever the Battery Backup outlets are overloaded. Circuit Breaker - the circuit breaker button located on the rear panel of the Back-UPS will stick out if an overload condition forces the Back-UPS to disconnect itself from utility power. If the button sticks out, disconnect non- essential equipment. Reset the circuit breaker by pushing the button inward. Status Indicators and Alarms 1 Placement / Power 3 Connect the Phone Line to Surge Protection Avoid placing the Back-UPS in: • Direct sunlight • Excessive heat • Excessive humidity or in contact with fluids of any type Plug the Back-UPS into a wall outlet, as shown.
